Features



  1. Comply to the highest security standards - Certified ANSI A156.1 Grade 2 (2 bearings model) standards
  2. Exceptional Durability in Harsh Environment - Manufactured with premium 304 stainless steel material and tested to a 200-hour salt-spray test.
  3. Convenient Installation - Each set of hinges is supplied with 8 pieces of machine screws and 8 pieces of wood screws by default
  4. Versatile Sizing Options - Various sizes are available to accomodate different project requirements

Specifications

Material

304 stainless steel.

Handing

Non-handed

Door WeightUp to 120kgRemovable PinRemovable / non-removable pin are available
ComplianceANSI A156.1Sizes

Imperial(") / metric(mm) units

  • 4.5 x 4 x 0.134 / 114.3 x 101.6 x 3.4
  • 4.5 x 4.5 x 0.134 / 114.3 x 114.3 x 3.4
  • 5 x 4.5 x 0.146 / 127 x 114.3 x 3.7
  • 5 x 5 x 0.146 / 127 x 127 x 3.7

Downloads

Briton AH500 Series Hinges Datasheet

Filename
Briton AH500 Series Hinges Datasheet 1124.pdf
Size
911 KB
Format
application/pdf

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Door Hardware Maintenance.pdf
Size
109 KB
Format
application/pdf

2310 Caring for Door Hardware Finishes

Filename
2310 Allegion Caring for Door Hardware Finishes.pdf
Size
84 KB
Format
application/pdf

Briton AH500 Series Hinges Datasheet

Filename
Briton AH500 Series Hinges Datasheet 1124.pdf
Size
911 KB
Format
application/pdf

No selected resources found. Try another category.

No selected resources found. Try another category.

No selected resources found. Try another category.

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Door Hardware Maintenance.pdf
Size
109 KB
Format
application/pdf

2310 Caring for Door Hardware Finishes

Filename
2310 Allegion Caring for Door Hardware Finishes.pdf
Size
84 KB
Format
application/pdf

Providing safe and functional environments

For over 100 years the Briton brand has been synonymous with the very best in door controls and exit hardware.

It is a well-earned reputation based on a tradition of producing high quality, highly engineered products, designed to stand the test of time and to endure the rigours of life on buildings throughout the world.

Discover more

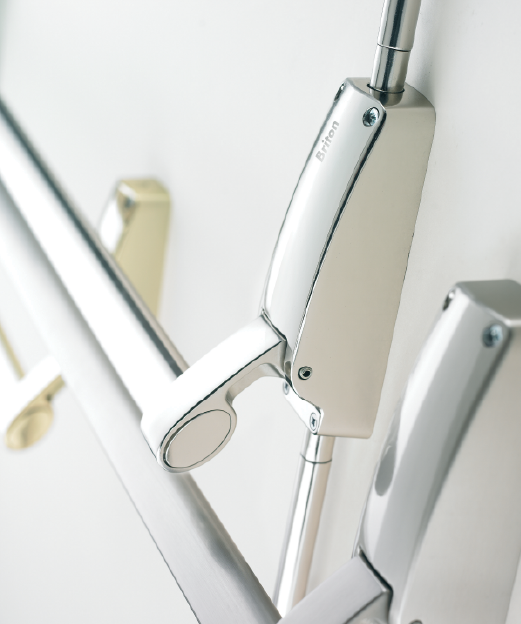

Briton 200 Series Door Closers
